Shmup

A 10-line TurboBASIC XL program for the Atari 8-bit computer
Written for 2014 NOMAM programming competition

Bill Kendrick, February 13, 2014

An entry for the NOMAM 2014 10-line TurboBASIC XL game competition.

Objective

I posed a question on Facebook, asking what my next game for this competition should be. Among the replies, my friend and indie game developer Adam Rippon suggested a shmup" (shoot 'em up) (because "There's not enough shmups").

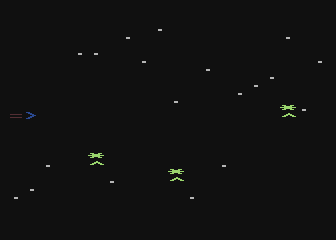

In the game, you control a ship at the left of the screen (render as the characters "=>"), which can move vertically using Up and Down on a joystick, and shoot lasers towards the right side of the screen using the joystick Fire button.

Enemies appear randomly on the right side of the screen and move left, towards you. If you crash into an enemy, you lose a life (you have 3). Shoot the enemies to destroy them and earn a point.

As the game progresses, the enemies appear more often. (The difficulty, based on your progress, starts at 0.0 and maxes out at 10.0.)

When you run out of lives, the game ends and your score ("SC", short for "score") and progress ("WV", short for "wave"), are shown at the top of the screen. Press Fire to start a new game.

Development

I decided to use a large text mode, and use block memory movement of screen data to provide coarse scrolling. After writing a basic starfield that scrolled to the left, I began using some pre-calculated pointers (rather than doing the same math every frame), and variables-as-constants, to achieve fairly fast results.

Next came a ship, which moved vertically. Then enemies, which your ship would collide with. The laser was added next, but my initial attempt at having a screen-width trail which was erased at the end of the laser shot was failing.

I added sound effects and explosions — enemies as a quick FOR-loop when they're hit, and your own ship as an ongoing explosion while the rest of the game continued (i.e., your exploding ship keeps flying through space).

I went back and opted to have the laser erase itself as it shot across the screen. At this point, the game worked, but I decided to add one final

Line-by-line Breakdown of the Source Code

Set-up

10 GRAPHICS 17:SC=DPEEK(88):SC1=SC+1:SC440=SC+440:SC420=SC+420:YSC=SC+220:Z479=479:Z19=19:Z20=20:SOUND 1,200,0,4:LV=3

Switch to 20x24 colored text mode, with no normal (GRAPHICS 0-style) text window at the bottom
Locate the beginning of screen memory, store it in SC
And one byte into screen memory (X=1,Y=0), SC1
And the beginning of one of the last lines of screen memory, SC440
And the line above that, SC420
Using a reference into screen memory, we set the ship's vertical position, YSC; subtract 20 and the ship moves up a line, etc.
Set some constants, Z479, Z19 and Z20
Play a low 'space ship engine' sound on channel #2
We begin the game with three lives (LV)

Main loop

100 POKE SC+Z19+RAND(23)*Z20,14:FOR I=SC TO SC440 STEP Z20:POKE I,%0:NEXT I:IF RAND(12-WV)=0:BSC=SC+Z19+RAND(22)*Z20

Add a star at some randomly-chosen vertical position on the right edge of the screen
Erase everything from the left edge of the screen
Randomly decide (based on our progress, WV), whether to add an enemy at the right edge of the screen, too. If so...
- Determine it's position, relative to screen memory (BSC)

110 POKE BSC,74:POKE BSC+Z20,126:ENDIF :MOVE SC1,SC,Z479:IF EX=0:C=PEEK(YSC+1):DPOKE YSC,40669:S=PEEK(632):F=STRIG(%0)

... (adding an enemy)
- Draw the enemy shape; a * on top, and a ^ on the bottom
Move the entire screen left one column. (Since we erased the leftmost edge first, it won't wrap around to the right column of the row above.)
If our ship is not exploding...
- See what object is at our ship's position on the screen
  (At this point, the entire screen has been shifted left, so the nose (">") of our ship is at column 0, and will soon be redrawn at column 1. By checking what's at column 1 just before that, we can tell whether we crashed into an enemy.)
- Draw our ship
- Grab the state of the joystick (S) and fire button (F)

120 IF C<>%0 AND C<>14 THEN EX=30:LV=LV-%1:IF LV=%0 THEN ? #6;"SC:";PT;" WV:";WV:PAUSE 2:WHILE STRIG(%0):WEND :RUN

... (our ship is not exploding)
- If we've crashed (the shape at our ship is not space (0), or a star (".", 14)
  - Begin exploding (EX)
  - Reduce the number of lives (LV)
  - If we've ran out of lives:
    - Show our score (SC) and progress/wave (WV)
    - Wait a couple seconds (to let user stop hitting Fire)
    - Wait until user does hit fire
    - Restart the game

130 IF S=14 AND YSC>SC:YSC=YSC-Z20:ENDIF :IF S=13 AND YSC<SC420 THEN YSC=YSC+Z20

... (our ship is not exploding)
- If user is pushing Up, and we're not at the top of the screen, move up
- If user is pushing Down, and we're not at the top of the screen, move down

140 IF F=%0:FOR X=2 TO 18 STEP 2:LX=X:C=DPEEK(YSC+X):IF C<>%0 AND C<>14 AND C<>3584 AND C<>3598:GOSUB 1000:ENDIF

... (our ship is not exploding)
- If the user is pressing Fire
  - Go across the screen (X)
  - Keep track of our current position (LX); it may get altered (to short-circuit us out of this FOR-loop), if we hit an enemy (so that you only hit the first one, not all enemies on the row)
  - See what's at this position (looking at two bytes) (C)
  - If it's not space, space and a star, star and a space, or two stars, it must be an enemy; jump to the enemy-destruction subroutine.

150 DPOKE YSC+LX,65535:DPOKE YSC+LX-2,%0:NEXT X:DPOKE YSC+LX,%0:ENDIF :ELSE :DPOKE YSC,RAND(65536):EX=EX-1

... (our ship is not exploding)
- ... (user is pressing fire)
  - ... (going across the screen)
    - Draw a laser at our current location (LX)
    - Erase the laser at our previous location (LX-2)
  - Erase the laser at its final location
Otherwise, our ship IS exploding
- Draw random garbage ("explosion") instead of our ship
- Count down the explosion animation timer (EX)

999 SOUND 0,R,12,EX/%2:ENDIF :R=PEEK(53770):DPOKE 708,(R&15)+R*256:IF WV<10:WV=WV+0.01:ENDIF :GOTO 100

... (our ship IS exploding)
- Play a random explosion-y sound effect, fading out over time
  (R is actually set later, outside of this IF/ELSE/ENDIF, but since it's set every iteration of the main loop, it's fine to just use it)
Grab a random number from RANDOM register and store it in a variable (R)
Set COLOR0, used for the stars, to a random (R) shade (luminence) of white, and COLOR1, used for the enemies, to a totally random color (hue+luminence)
If we haven't hit the max. progress amount (WV) of '10', add a little bit to it until we do

Enemy explosion subroutine

1000 ESC1=YSC+X:X=18:ESC2=ESC1:IF YSC>SC:ESC2=ESC1-Z20:ENDIF :FOR I=%0 TO 7:DPOKE ESC1,I*257:DPOKE ESC1+Z20,I*257

Determine position, within screen memory, of the spot the laser hit (ESC1)
Set ESC2 to the same as ESC1
(Because just doing it first, then changing it within the IF/ENDIF, is less code than having a proper IF/ELSE/ENDIF)
If we weren't shooting at the very top of the screen, set ESC2 to the spot one line above
(Note: We erase both the spot we hit, and the same spot in the row above and below, because the enemies are two-rows tall. We're not checking whether we hit the top or bottom of the enemy, so simply explode above and below to "cover all our bases.")
Within a short loop (I)...
- Draw random characters where we shot (ESC1)
- Draw random characters on the line below (ESC2+Z20)

1010 DPOKE ESC2,I*257:SOUND %0,PEEK(53770),8,14-I*%2:NEXT I:DPOKE ESC1,%0:DPOKE ESC1+Z20,%0:DPOKE ESC2,%0:PT=PT+1:RETURN

... (within a short loop)
- Draw random characters on the line above (or the same spot, if we're already at the top) (ESC2)
- Play a random explosion sound, fading out over time
Erase the enemy, at the two or three rows
Add to our score

Download

SHMUP.TBS - tokenized TurboBASIC XL file
shmup-20140213.atr - ATR disk ima ge containing:
- MyDOS 4.53/3 (DOS.SYS, DUP.SYS)
- TurboBASIC XL (auto-run, TBASIC.AR0)
- The game (TBXL auto-run, AUTORUN.BAS; except for the filename , same as SHMUP.TBS stand-alone file, above)
